Expansion Joint
The Expansion Joints absorbs movements, vibrations, and tensions in the pipe systems with
fluids at temperatures under 200 ºC (390 ºF) and standard pressures. They provide protection
against thermal movements and mechanical forces for high value equipment (pumps, valves,
condensers, etc.)
Sl:No |
Product Type |
Size (Ranges) |
Material Standard / Grades |
1 |

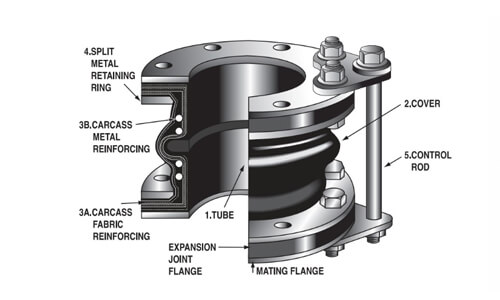

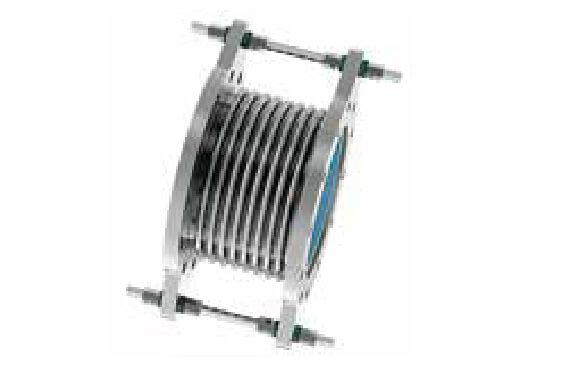

EXPANSION JOINT
(TYPES : RUBBER & METALLIC
EXPANSION JOINTS) |
|
DN40 (1½”) to DN2500 (100”) |
|
BODY : ASTM A105 / ASTM A36 / A182 304/304L/316/316L
DESIGN / PRESSURE RATING : EJMA STD.
ASME B16.5 / B16.47 / AWWA C207 OR EQUV.
BOLTS : ASTM A193 B7/B7M A320 L7/L7M / B8M
NUTS - ASTM A194 2H/2HM / 8M |
|
