Technical Data

DEFINITION

D - Diameter in mm or inch

T - Wall thickness in mm or inch

L - Length in meters or feet

W - Weight of the Pipe in Kg per meter or Ib per foot.

WEIGHT OF THE PIPE & TUBE

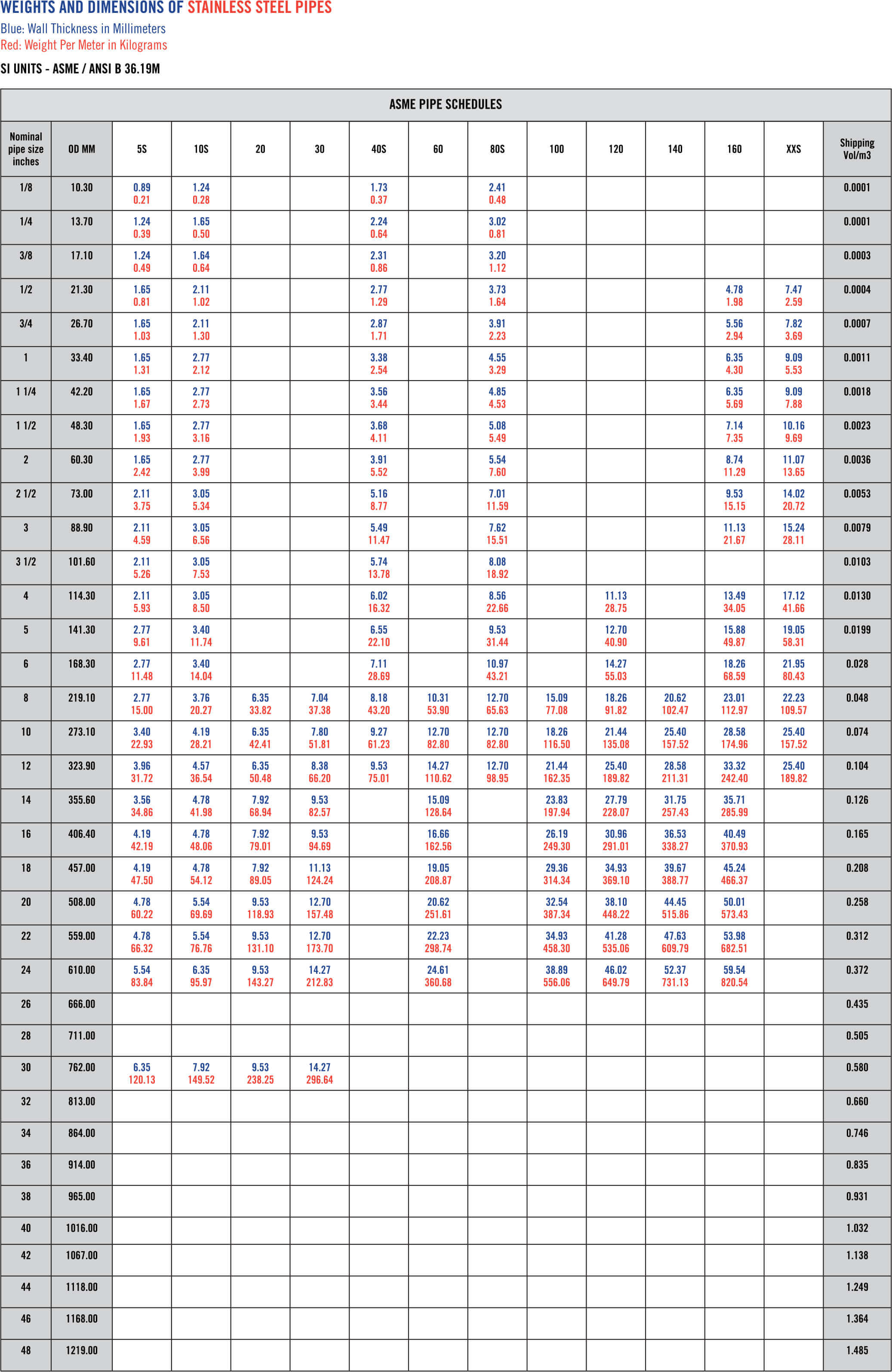

Standard wall thickness with weight per meter and per foot is listed in specifications and those for API 5L and ASME B 36.10M/B36.19M are included in this brochure.

For non-standard wall thickness:

For carbon steel pipes the below formula applies:

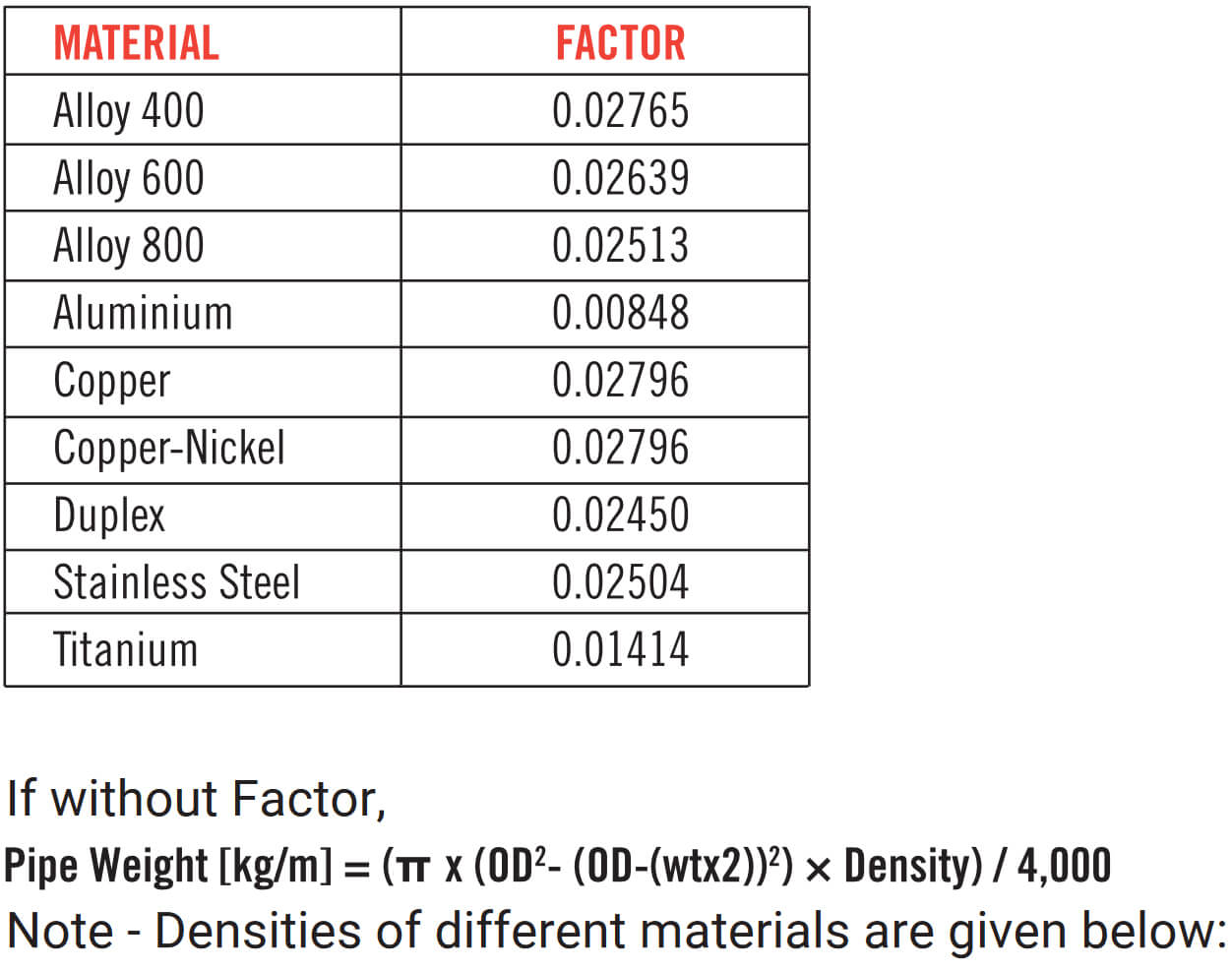

Pipe Weight [kg/m] = 0.0246615 x (OD[mm] -wt[mm]) x wt[mm] For weights per meter of pipe and tube of other materials replace the constant ( 0.0246615 ) in the formula above as follows:
